CROSSED ROLLER BEARING
EOE’s designs and manufactures a variety of cross roller bearings that can handle radial, thrust and moment loads at the same time. These compact bearing feature rollers crossed at right angles between inner and outer rings. This structure can reduce the combined height required for bearings, achieving high rigidity and excellent load capacity.
The roller of the cross roller bearing is in line contact with the track surface, so when the bearing is under load, it can have a large load bearing area, so it is most suitable for the rotating parts of industrial robots, rotary tables, medical equipment, and the like.
- Widely used in machine tools, industrial robots and medical equipment because of their high rotational accuracy.
- Roller guide options include a cage or separator as well as a full complement design. Both the cage and separator styles offer a small coefficient of friction for high-speed rotation. Full complement bearings handle heavy loads at low speeds.
- Sealed and open designs are available. Sealed bearings incorporate synthetic rubber seals to protect against dust, dirt and grease.
ERA Series Crossed Roller Bearing
Thin Type, Separable Outer Ring, A compact type similar to model ERB with the thinner inner and outer rings. Optimal for locations requiring a light-weight and compact design.
View more >

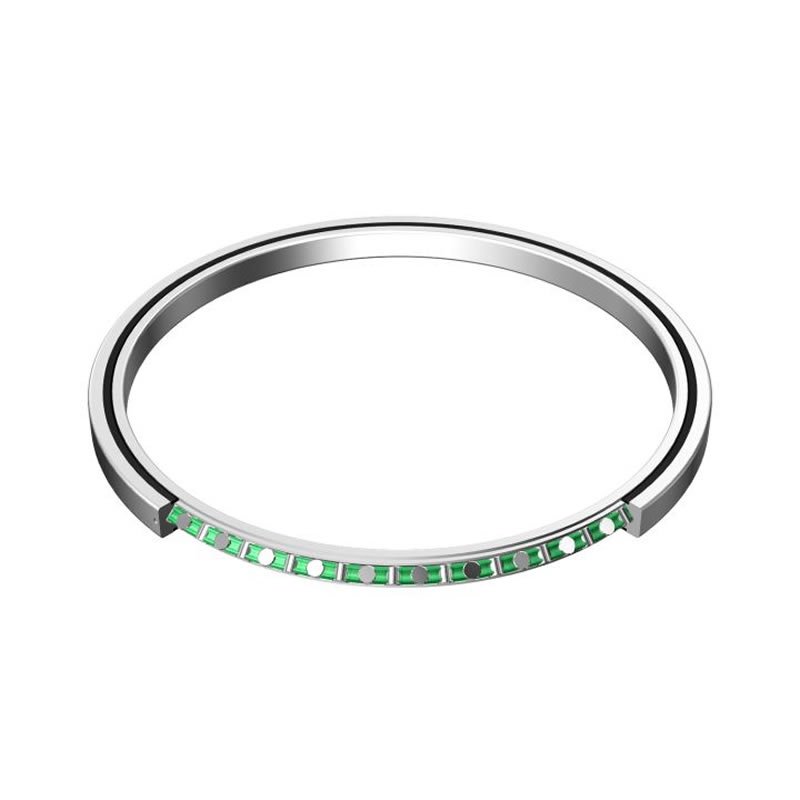

ERAC Series Crossed Roller Bearing
Thin Type, Single Split Outer Ring, Owing to its Single-split Outer Ring structure with a highly rigid outer ring, this model can be used for outer ring rotation as well while model ERA is for inner ring rotation.
View more >
ERAU Series Crossed Roller Bearing
Compact Type, Integrated Inner/Outer Ring, Model ERAU is more compact and lighter weight. Because of the integrated structure, the ERAU can be used for either inner ring or outer ring rotation.
View more >

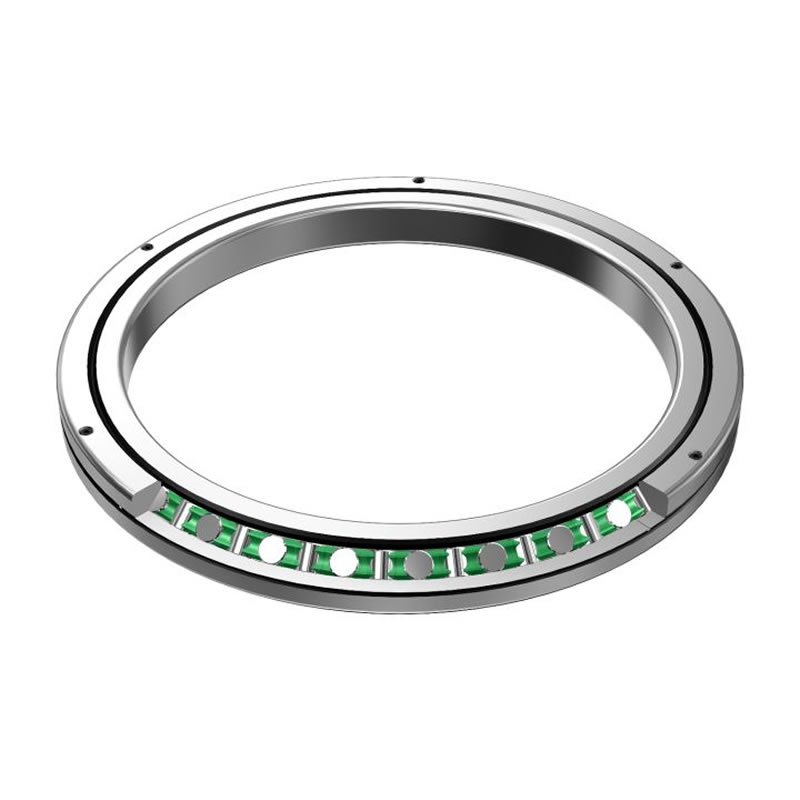

ERB Series Crossed Roller Bearing
Cross-Roller Ring basic type, with a separable outer ring, and an inner ring integrated with the main body. It is used in locations where the rotational accuracy of the inner ring is required.
View more >
ERBC Series Crossed Roller Bearing
EOE ERBC series standard type crossed roller bearings, open type/with cage, open type/f ull complement type, sealed type/ with cage, sealed type/full complement type. shaft dia. 30 − 200mm.
View more >

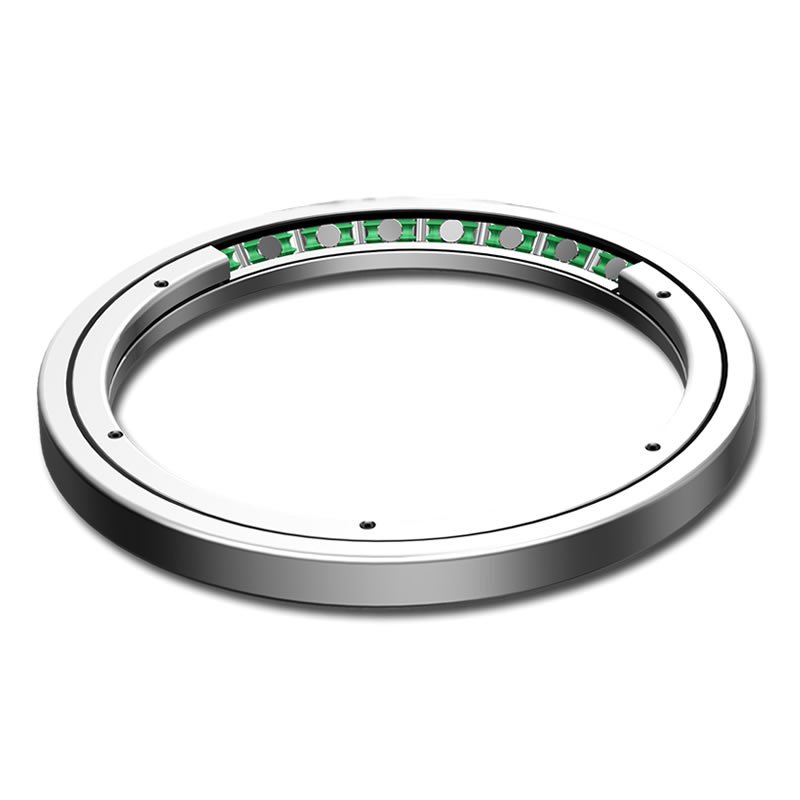

ERE Series Crossed Roller Bearing
ERE This model has the same main dimensions as model ERB, but is used in areas where the outer ring is required have high rotation accuracy. Its rotation accuracy is of ultra precision grade.
View more >

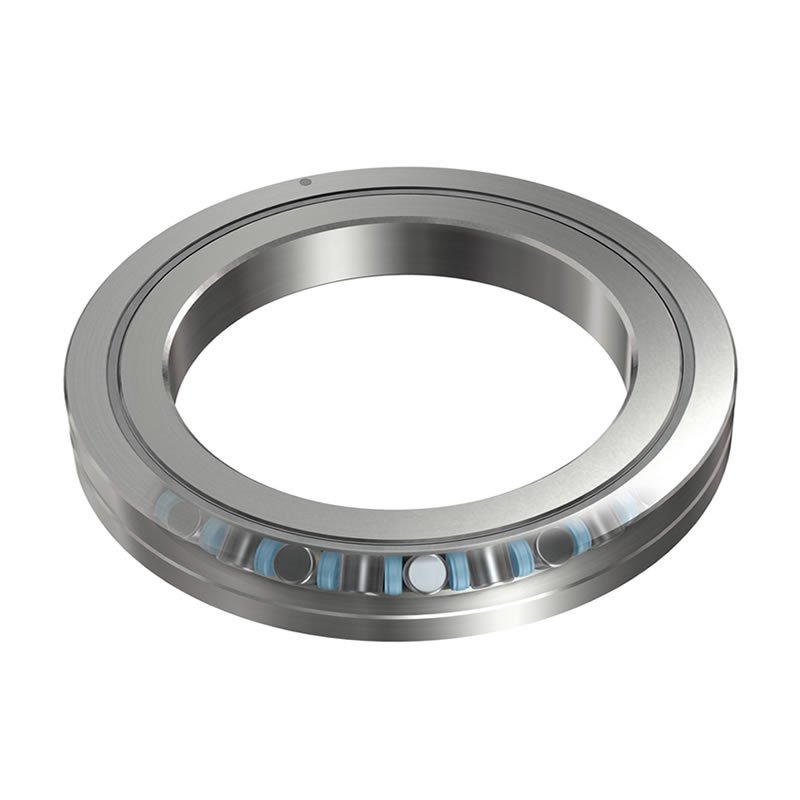

ERBH Series Crossed Roller Bearing
EOE ERBH Series high rigidity type crossed roller bearings, open type/with separator, sealed type/with separator, shaft dia. ERBH bearings series shaft dia. 20 − 250mm. size can be customized.
View more >
ERU Series Crossed Roller Bearing
The integrated design of the unit’s inner and outer rings, with mounting holes on both rings, eliminates the need for a special flange or housing and enables easy installation.
View more >

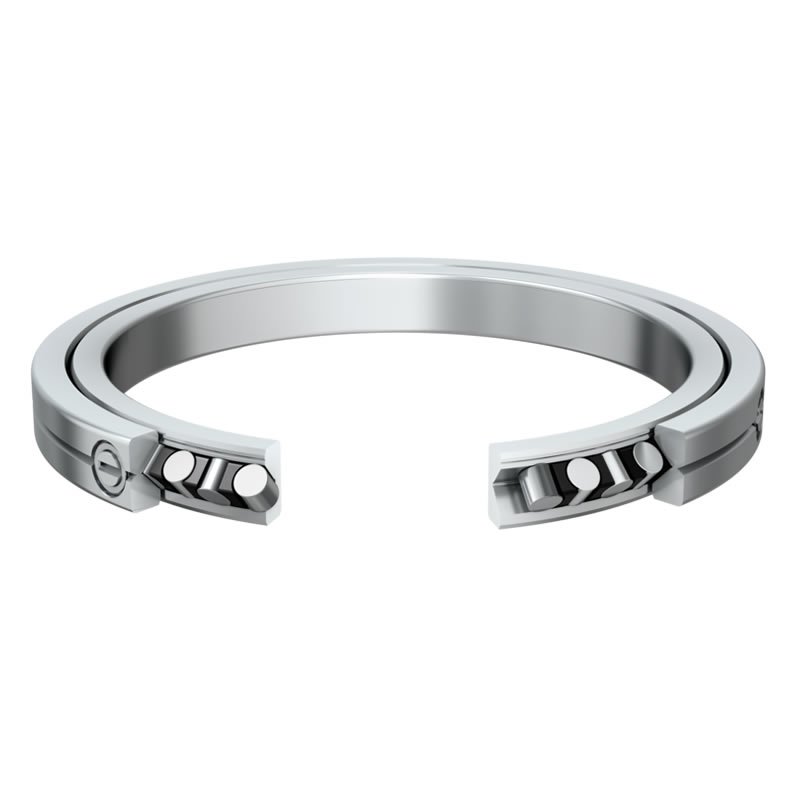

ESX Series Crossed Roller Bearing
Crossed roller bearing corresponding to dimension series 18, not sealed, greased, with clearance, reduced clearance or preloaded, outer ring circumferentially split and held together by three retaining rings.
View more >

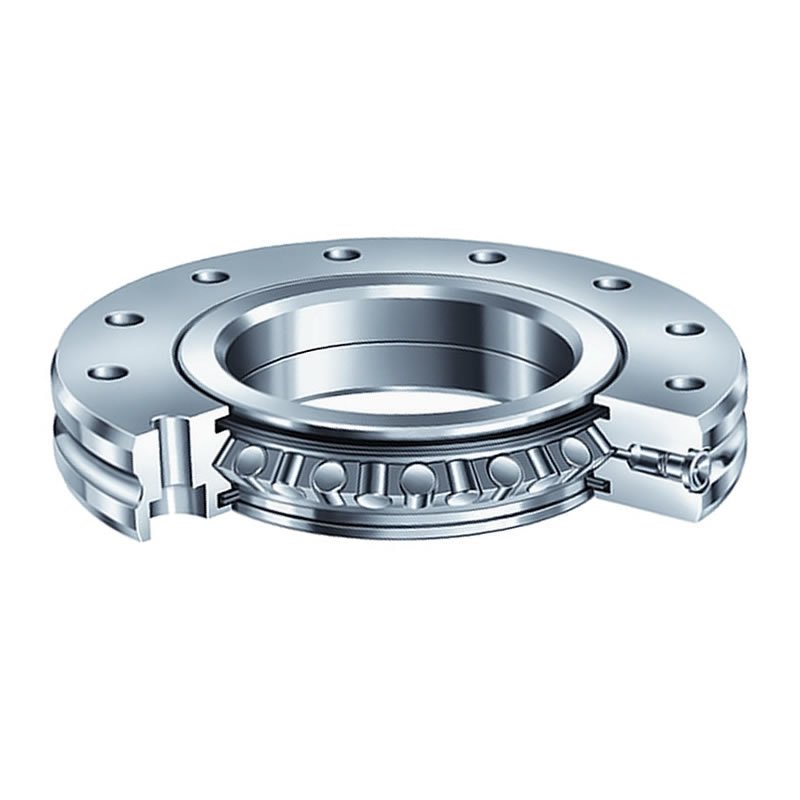

EXV Series Crossed Roller Bearing
Crossed roller bearing, sealed on both sides, with clearance, can be preloaded by locknut, inner ring circumferentially split, outer ring can be screw mounted directly on the adjacent construction.
View more >

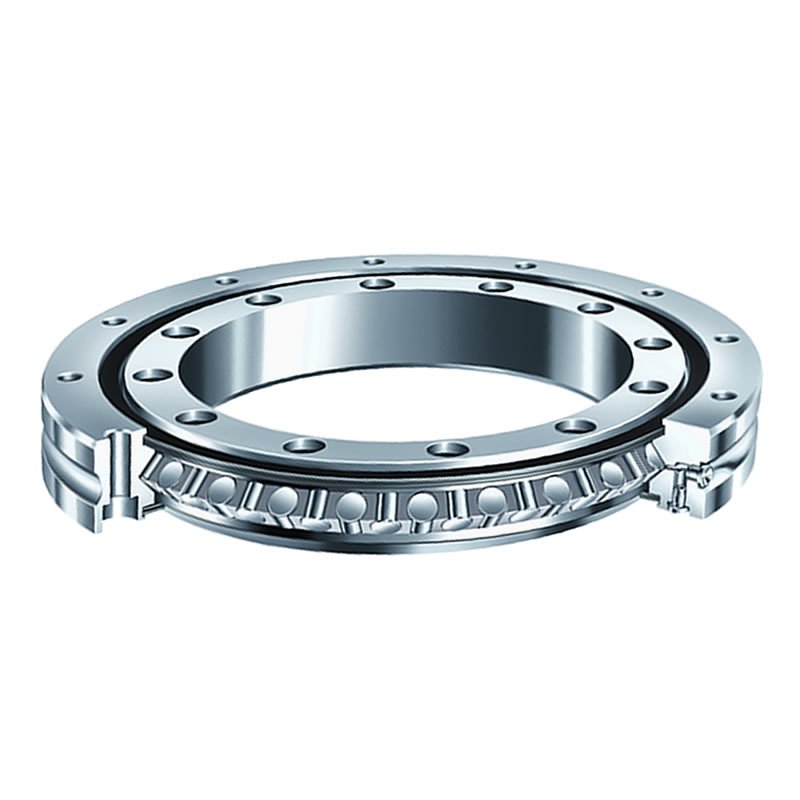

EXSU Series Crossed Roller Bearing
Crossed roller bearing, sealed on both sides, greased, preloaded, centred on the inside and outside diameter, bearing rings can be screw mounted directly on the adjacent construction.
View more >

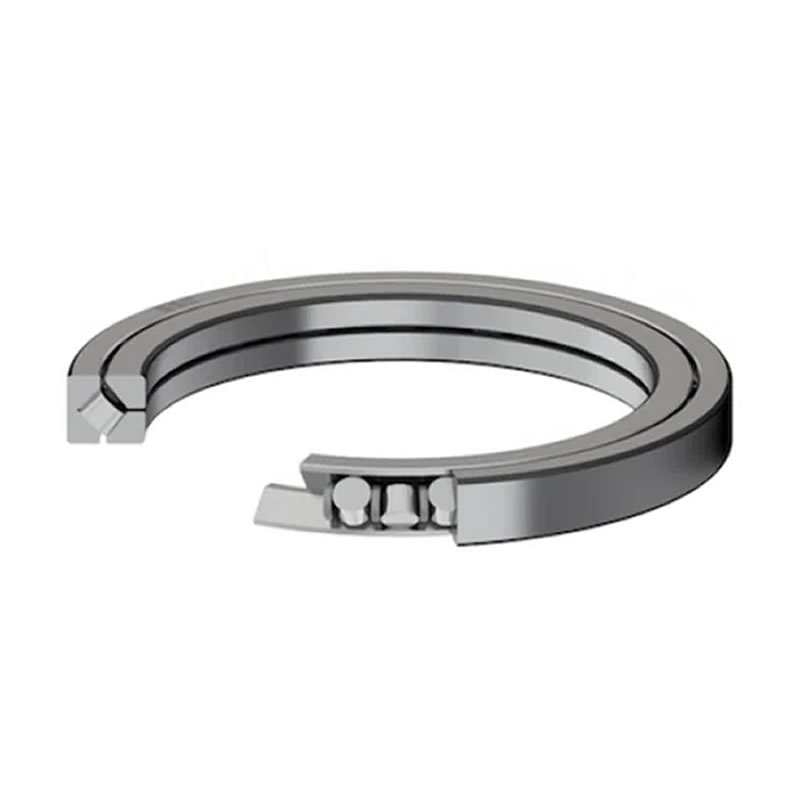

EXR Series Crossed Roller Bearing
Cross taper rollers are designed to offer the highest levels of rotational accuracy. The steep-angle, tapered geometry results in a total effective bearing spread much greater than the width of the bearing itself.
View more >
CROSSED ROLLER BEARING APPLICATION
It suitable used in the rotating parts of machine tools, industrial robots, measuring instrument and IC manufacturing.

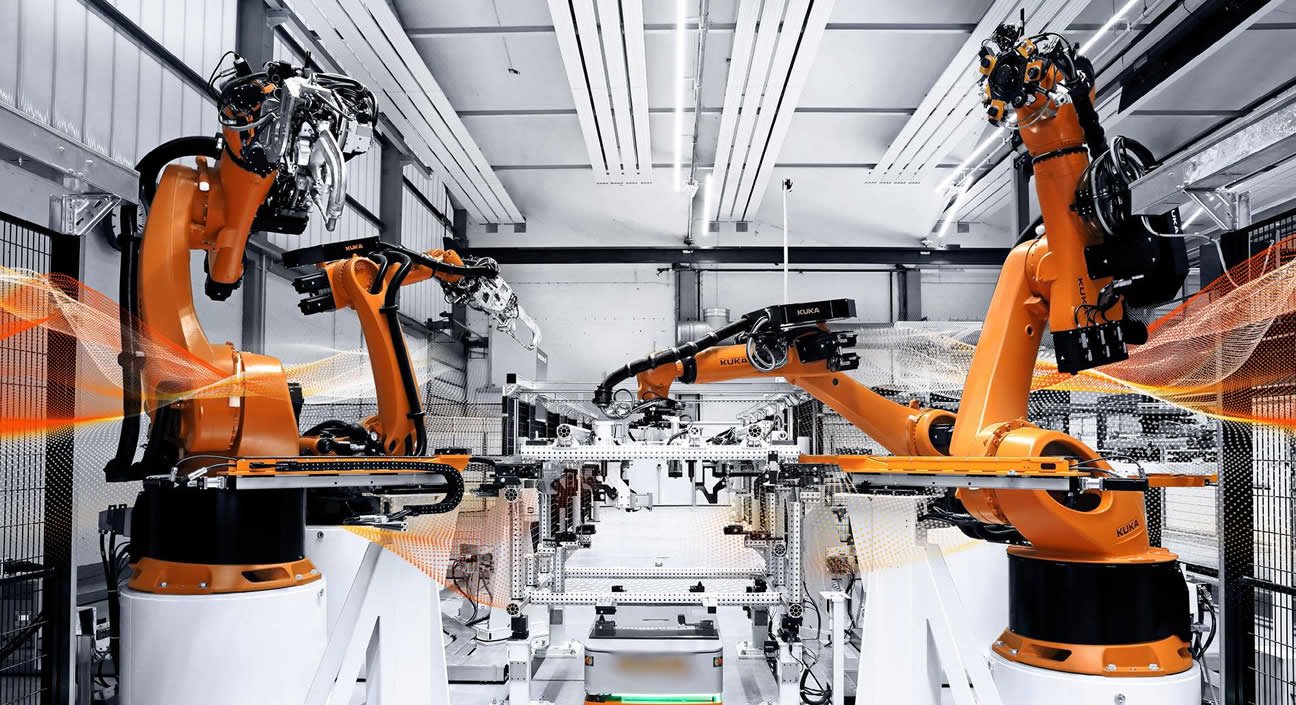

Industrial Robots
Aerospace
Machine Tool
Medical Equipment
Precision Instruments
Transport Systems
Semiconductor
Precision Rotary Tables
